產品：PSS
產品特性:
■特點：
☆不通孔回轉油缸。
☆采用雙活塞，可同時實現現兩種動作。
☆是專用（汽車輪轂）卡盤理想的動力源。
■Specificity:
☆The cylinders are non-through-hole.
☆Adopting double-piston and can achieve two actions at the same time.
☆It is the ideal power source for the special (anto-mobile wheel hub ) chuck.
產品詳情

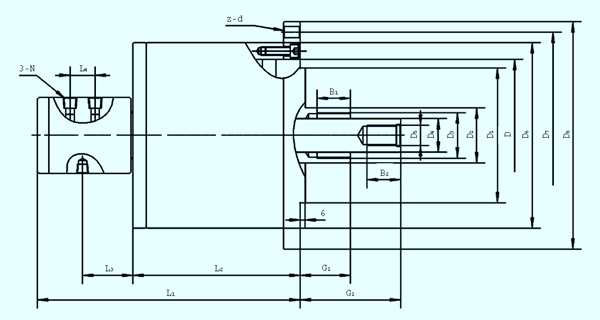

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
D6
|
D7
|
D8
|
G1
|
G2
|
z-d
|
B1
|
B2
|
L1
|
L2
|
L3
|
L4
|
N
|
|
max
|
min
|
Max
|
min
|
|
PSS130
|
130
|
105
|
50
|
M42×1.5
|
28
|
M16
|
170
|
145
|
-
|
46
|
21
|
88
|
63
|
6×M10
|
30
|
30
|
280
|
165
|
61.5
|
26
|
Rc3/8
|
|
PSS180
|
180
|
160
|
65
|
M52×2
|
40
|
M24
|
220
|
245
|
270
|
60
|
20
|
120
|
80
|
8-Φ3.5
|
40
|
40
|
315
|
200
|
60
|
30
|
Rc3/8
|
■性能參數 Characteristic Parameters
|
規格
Size
|
前缸活塞有效面積㎝2
Piston effective area
|
后缸活塞有效面積㎝2
Piston effective area
|
活塞行程
L max
Piston stroke
|
最大使用壓力MPa
Max.acting pressure
|
極限轉速r/min
Max. speed
|
推薦動力卡盤
Rec. power chuck
|
凈重Kg
Net WT
|
|
PSS130
|
推側push side125
|
推側pull side 34
|
25
|
4.0
|
5000
|
K56 200
|
23
|
|
拉側pull side 111
|
拉側push side27
|
|
PSS180
|
推側push side241
|
推側pull side 254
|
40
|
4.0
|
1000
|
專用卡盤
|
45
|
|
拉側pull side 226
|
拉側push side241
|
|
