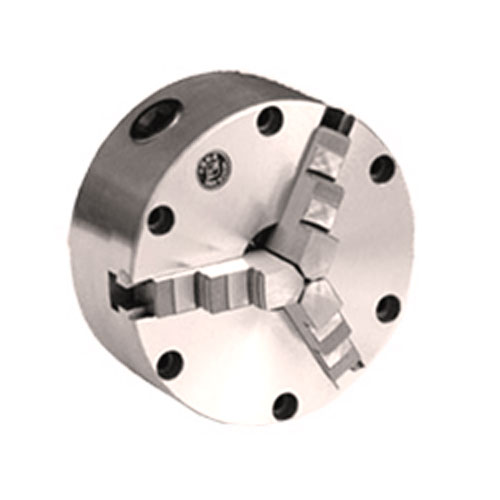

產品：K18
產品特性:
■特點：
☆短圓柱連接形式。
☆雙工字槽結構,強度高,使用壽命長。
■Specificity:
☆Short cylindrical center mounting.
☆With double jaw guides , with high intensity and long working life.
產品詳情

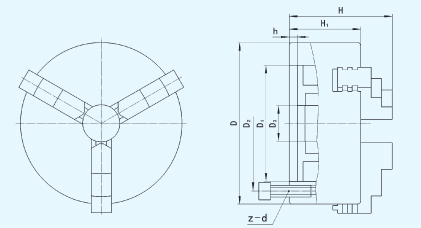

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格D
Size
|
D1
|
D2
|
D3
|
H
|
H1
|
h
|
z-d
|
凈重kg
Net WT.
|
|
160
|
125
|
140
|
42
|
106
|
76
|
5
|
6-M10
|
9
|
|
160A
|
125
|
140
|
42
|
120
|
76
|
5
|
6-M10
|
8.5
|
|
200
|
165
|
180
|
65
|
120
|
86
|
5
|
6-M10
|
16
|
|
200A
|
165
|
180
|
65
|
133
|
86
|
5
|
6-M10
|
14.7
|
|
250
|
206
|
226
|
80
|
134
|
94
|
5
|
6-M12
|
26.5
|
|
250A
|
206
|
226
|
80
|
149
|
94
|
5
|
6-M12
|
24
|
|
315
|
260
|
285
|
100
|
163
|
106
|
6
|
6-M16
|
49
|
|
315A
|
260
|
285
|
100
|
170.5
|
106
|
6
|
6-M16
|
43
|
|
