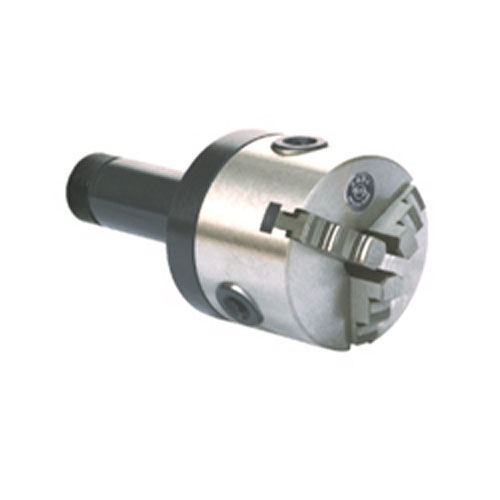

	產品:RKB11 產品特性:

	 ■特點:
 ☆通過莫氏錐柄卡盤安裝在機床尾座上,用于工件中心不能使用的加工中(例如管件的加工),對工件起輔助定位支撐作用。
 ☆安裝省時,定心精度高,夾持范圍廣。
 ☆卡盤采用鋼制盤體和封閉的球軸際結構,可適用于較高轉速。
 ■Specificity:
 ☆These chucks are used in tailstocks for jobs where center can not be used (example-machining of tube) through the morse taper shank so the chucks can be mounted and removed easily , location and supporting for the workpieces.
 ☆With short mounting time, high centring precision , and large clamping range.
 ☆Steel body and sealed ball bearings used for high speed.

	產品詳情
	■尺寸、性能參數 Dimension、Characteristic Parameters




					|
							規格D

							Size
						 |
							L
						 |
							L1
						 |
							H1
						 |
							H
						 |
							h
						 |
							d
						 |
							莫氏錐度

							Morse Taper No.
						 |
							最大輸入扭矩

							Max. input torque
						 |
							極限轉速

							r/min

							Max.speed
						 |
					|
							RKB113″
						 |
							170
						 |
							16
						 |
							50
						 |
							90
						 |
							5
						 |
							17.78
						 |
							2
						 |
							40
						 |
							4000
						 |
					|
							2°51′41″
						 |
					|
							RKB114″
						 |
							200
						 |
							20
						 |
							55
						 |
							92
						 |
							5
						 |
							23.825
						 |
							3
						 |
							60
						 |
							3500
						 |
					|
							2°52′32″
						 |
					|
							RKB115″
						 |
							240
						 |
							24
						 |
							58
						 |
							117
						 |
							6.5
						 |
							31.267
						 |
							4
						 |
							100
						 |
							3200
						 |
					|
							2°58′32″
						 |
					|
							RKB116″
						 |
							291
						 |
							29
						 |
							65
						 |
							135
						 |
							6.5
						 |
							44.399
						 |
							5
						 |
							160
						 |
							3000
						 |
					|
							3°00′53″
						 |

 |
