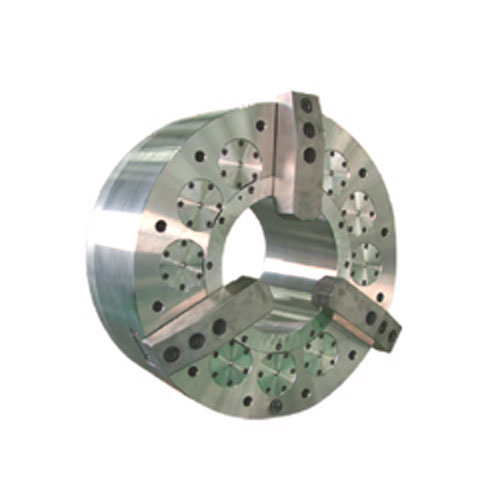

	產品:K59D 產品特性:

	 ■特點:
 ☆短圓柱連接形式。
 ☆前置式卡盤氣動松開,碟簧夾緊,卡爪大行程。
 ☆機床前后可各配一臺卡盤。
 ☆主要適用于管子車床。
 ☆斷開氣源方可工作。
 ■Specificity:
 ☆Short-cylindrical center mounting.
 ☆The chucks mounted in front and loosing by the air actuated ,the spring clamp,large stroke jaw.
 ☆A set of chuck can be equipped in front or rear of the machine.
 ☆Suitable fr the pipe lathes.
 ☆The chucks just work when switching off the air source.

	產品詳情

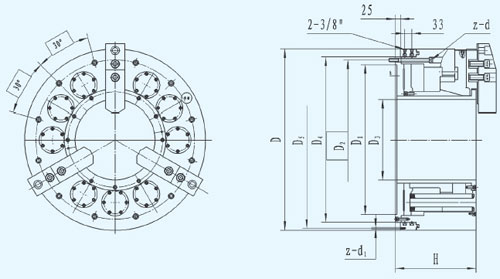

	■尺寸Dimension Parameters



			|
					規(guī)格D

					Size
				 |
					D1
				 |
					D2
				 |
					D3
				 |
					D4
				 |
					D5
				 |
					H
				 |
					h
				 |
					z-d
				 |
					z-d1
				 |
			|
					850
				 |
					700
				 |
					745
				 |
					375
				 |
					775
				 |
					830
				 |
					380
				 |
					8
				 |
					12-M16
				 |
					6-M8
				 |
	■性能參數Characteristic  Parameters



			|
					規(guī)格D

					Size
				 |
					楔心套行程L

					Lmax Piston stroke
				 |
					單爪行程t Jaw stroke
				 |
					最大夾緊力kN

					Max. gripping force
				 |
					極限轉速r/min

					Max. speed
				 |
					夾緊范圍

					(標準爪)

					Clamping range
				 |
					凈重kg

					Net WT.
				 |
			|
					850
				 |
					60
				 |
					15+12
				 |
					170
				 |
					700
				 |
					150-350
				 |
					1000
				 |

 |
